ASME/ANSI B16.11 NPT Threaded 3000LB~6000LB Tee and Cross

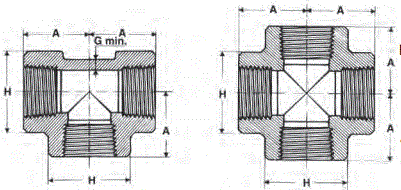

Forged Fittings: ASME/ANSI B16.11 3000LB~6000LB NPT Threaded Tee & Cross
Threads according to ASME/ANSI B1.20.1
*Dimensions and data sheet
|
Nominal Pipe Size
|
Class 3000
|
Class 6000
|
||||||||||
|
A
|
H
|
G
|
A
|
H
|
G
|
|||||||
|
mm
|
inches
|
mm
|
inches
|
mm
|
inches
|
mm
|
inches
|
mm
|
inches
|
mm
|
inches
|
|
|
1/4"
|
25
|
0.97
|
25
|
1.00
|
3.30
|
0.130
|
29
|
1.12
|
33
|
1.31
|
6.60
|
0.260
|
|
3/8"
|
29
|
1.12
|
33
|
1.31
|
3.51
|
0.138
|
33
|
1.31
|
38
|
1.50
|
6.98
|
0.275
|
|
1/2"
|
33
|
1.31
|
38
|
1.50
|
4.09
|
0.161
|
38
|
1.50
|
46
|
1.81
|
8.15
|
0.321
|
|
3/4"
|
38
|
1.50
|
46
|
1.81
|
4.32
|
0.170
|
44
|
1.75
|
56
|
2.19
|
8.53
|
0.336
|
|
1"
|
44
|
1.75
|
56
|
2.19
|
4.98
|
0.196
|
51
|
2.00
|
62
|
2.44
|
9.93
|
0.391
|
|
1-1/4"
|
51
|
2.00
|
62
|
2.44
|
5.28
|
0.208
|
60
|
2.38
|
75
|
2.97
|
10.59
|
0.417
|
|
1-1/2"
|
60
|
2.38
|
75
|
2.97
|
5.50
|
0.219
|
64
|
2.50
|
84
|
3.31
|
11.07
|
0.436
|
|
2"
|
64
|
2.50
|
84
|
3.31
|
7.14
|
0.281
|
83
|
3.25
|
102
|
4.00
|
12.09
|
0.476
|
|
2-1/2"
|
83
|
3.25
|
102
|
4.00
|
7.65
|
0.301
|
95
|
3.75
|
121
|
4.75
|
15.29
|
0.602
|
|
3"
|
95
|
3.75
|
121
|
4.75
|
8.84
|
0.348
|
106
|
4.19
|
146
|
5.75
|
16.64
|
0.655
|
|
4"
|
114
|
4.50
|
152
|
6.00
|
11.18
|
0.440
|
114
|
4.50
|
152
|
6.00
|
18.67
|
0.735
|
