ASME B16.47 Series A(MSS SP-44) Blind Flange RF 600LB

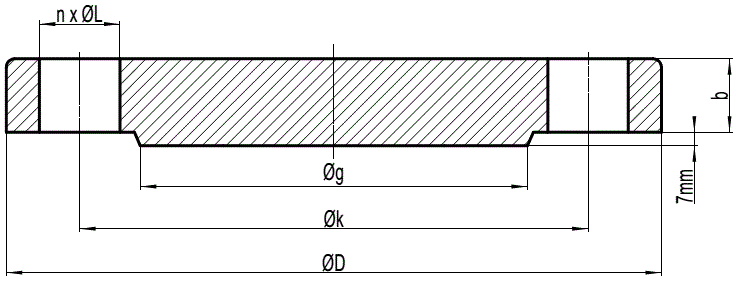

1. Drawing of ASME B16.47 Series A (MSS SP44) Blind Flanges RF Class 600
2. Dimensions & Weight of ASME B16.47 Series A (MSS SP44) BL RF 600LB
|
NPS
|
Flange Dimensions
|
RF
|
Drilling Dimensions
|
Weight
|
|||
|
D
inch mm |
b
inch mm |
g
inch mm |
No. of
Bolt Holes |
l
inch |
k
inch mm |
Pounds
Kilos |
|
|
26"
|
40.00
1015 |
4.94
125.5 |
29.50
749 |
28
|
2"
|
36.00
914.4 |
1675.36
759.80 |
|
28"
|
42.25
1075 |
5.19
131.8 |
31.50
800 |
28
|
2-1/8"
|
38.00
965.2 |
1982.49
899.09 |
|
30"
|
44.50
1130 |
5.50
139.7 |
33.75
857 |
28
|
2-1/8"
|
40.25
1022.4 |
2338.25
1060.43 |
|
32"
|
47.00
1195 |
5.81
147.7 |
36.00
914 |
28
|
2-3/8"
|
42.50
1079.5 |
2737.71
1241.59 |
|
34"
|
49.00
1245 |
6.06
154.0 |
38.00
965 |
28
|
2-3/8"
|
44.50
1130.3 |
3114.45
1412.45 |
|
36"
|
51.75
1315 |
6.38
162.0 |
40.25
1022 |
28
|
2-5/8"
|
47.00
1193.8 |
3676.51
1667.35 |
|
38"
|
50.00
1270 |
6.12
155.0 |
41.50
1054 |
28
|
2-3/8"
|
45.75
1162.0 |
3302.72
1497.83 |
|
40"
|
52.00
1320 |
6.38
162.0 |
43.75
1111 |
32
|
2-3/8"
|
47.75
1212.8 |
3690.18
1673.55 |
|
42"
|
55.25
1405 |
6.75
171.5 |
46.00
1168 |
28
|
2-5/8"
|
50.50
1282.7 |
4414.56
2002.07 |
|
44"
|
57.25
1455 |
7.00
177.8 |
48.25
1226 |
32
|
2-5/8"
|
52.50
1333.5 |
4905.04
2224.51 |
|
46"
|
59.50
1510 |
7.31
185.8 |
50.25
1276 |
32
|
2-5/8"
|
54.75
1390.6 |
5542.80
2513.74 |
|
48"
|
62.75
1595 |
7.69
195.3 |
52.50
1334 |
32
|
2-7/8"
|
57.50
1460.5 |
6434.12
2917.97 |
|
50"
|
65.75
1670 |
8.00
203.2 |
54.50
1384 |
28
|
3-1/8"
|
60.00
1524.0 |
7379.67
3346.79 |
|
52"
|
67.75
1720 |
8.25
209.6 |
56.50
1435 |
32
|
3-1/8"
|
62.00
1574.8 |
8053.48
3652.37 |
|
54"
|
70.00
1780 |
8.56
217.5 |
58.75
1492 |
32
|
3-1/8"
|
64.25
1632.0 |
8949.92
4058.92 |
|
56"
|
73.00
1855 |
8.88
225.5 |
60.75
1543 |
32
|
3-3/8"
|
66.75
1695.4 |
10007.00
4538.32 |
|
58"
|
75.00
1905 |
9.12
231.8 |
63.00
1600 |
32
|
3-3/8"
|
68.75
1746.2 |
10920.33
4952.53 |
|
60"
|
78.50
1995 |
9.56
242.9 |
65.25
1657 |
28
|
3-3/8"
|
71.75
1822.4 |
12602.13
5715.25 |
*D: outside diameter of flange; g: diameter of raised face; k: diameter of bolt circle.
b: flange thickness, the thichness of raised face should be in addition to the minimum flange thickness.
b: flange thickness, the thichness of raised face should be in addition to the minimum flange thickness.
h: total length through hub; a: diam. of hub top; m: diameter of hub root;
