ASME B16.47 Series A(MSS SP-44) Blind Flange RF 900LB

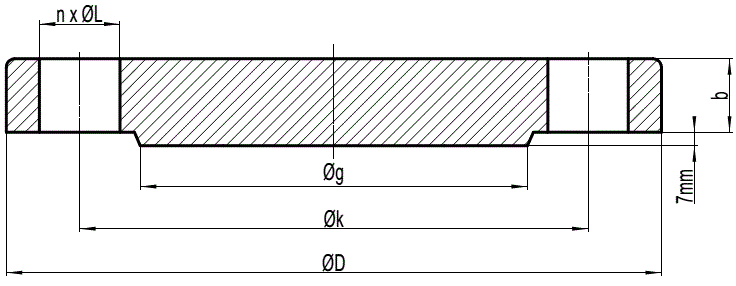

1. Drawing of ASME B16.47 Series A (MSS SP44) Blind Flanges RF Class 900
2. Dimensions & Weight of ASME B16.47 Series A (MSS SP44) BL RF 900LB
|
NPS
|
Flange Dimensions
|
RF
|
Drilling Dimensions
|
Weight
|
|||
|
D
inch mm |
b
inch mm |
g
inch mm |
No. of
Bolt Holes |
l
inch |
k
inch mm |
Pounds
Kilos |
|
|
26"
|
42.75
1085 |
6.31
160.4 |
29.50
749 |
20
|
2-7/8"
|
37.50
952.5 |
2385.90
1082.04 |
|
28"
|
46.00
1170 |
6.75
171.5 |
31.50
800 |
20
|
3-1/8"
|
40.25
1022.4 |
2944.14
1335.21 |
|
30"
|
48.50
1230 |
7.18
182.6 |
33.75
857 |
20
|
3-1/8"
|
42.75
1085.8 |
3515.76
1594.45 |
|
32"
|
51.75
1315 |
7.62
193.7 |
36.00
914 |
20
|
3-3/8"
|
45.50
1155.7 |
4235.45
1920.84 |
|
34"
|
55.00
1395 |
8.06
204.8 |
38.00
965 |
20
|
3-5/8"
|
48.25
1225.6 |
5041.73
2286.50 |
|
36"
|
57.50
1460 |
8.44
214.4 |
40.25
1022 |
20
|
3-5/8"
|
50.75
1289.0 |
5810.31
2635.06 |
|
38"
|
57.50
1460 |
8.50
215.9 |
43.25
1099 |
20
|
3-5/8"
|
50.75
1289.0 |
5866.95
2660.75 |
|
40"
|
59.50
1510 |
8.81
223.9 |
45.75
1162 |
24
|
3-5/8"
|
52.75
1339.8 |
6446.32
2923.50 |
|
42"
|
61.50
1560 |
9.12
231.8 |
47.75
1213 |
24
|
3-5/8"
|
54.75
1390.6 |
7174.98
3253.96 |
|
44"
|
64.88
1650 |
9.56
242.9 |
50.00
1270 |
24
|
3-7/8"
|
57.62
1463.7 |
8338.01
3781.41 |
|
46"
|
68.25
1735 |
10.06
255.6 |
52.50
1334 |
24
|
4-1/8"
|
60.50
1536.7 |
9679.42
4389.76 |
|
48"
|
70.25
1785 |
10.38
263.6 |
54.50
1384 |
24
|
4-1/8"
|
62.50
1587.5 |
10627.17
4819.58 |
*D: outside diameter of flange; g: diameter of raised face; k: diameter of bolt circle.
b: flange thickness, the thichness of raised face should be in addition to the minimum flange thickness.
b: flange thickness, the thichness of raised face should be in addition to the minimum flange thickness.
h: total length through hub; a: diam. of hub top; m: diameter of hub root;
