ASME B16.47 Series A(MSS SP-44) Blind Flange RTJ 400LB

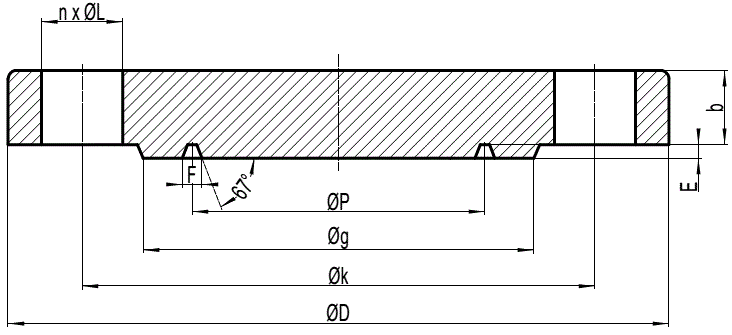

1. Drawing of ASME B16.47 Series A (MSS SP44) BL RTJ Class 400
2. Dimensions & Weight of ASME B16.47 Series A (MSS SP44) BL RTJ 400LBS
NPS
|
Flange Dim.
|
Ring Joint Dimension
|
Drilling Dimensions
|
Weight
|
|||||||
D
inch mm |
b
inch mm |
Groove
Number |
P
inch mm |
E
inch mm |
F
inch mm |
g
inch mm |
No. of
Bolt Holes |
L
inch |
k
inch mm |
Pounds
Kilos |
|
26"
|
38.25
970 |
3.88
98.5 |
R93
|
29.50
749.30 |
0.50
12.70 |
0.78
19.84 |
31.88
810 |
28
|
1-7/8"
|
34.50
876.3 |
1166.31
528.94 |
28"
|
40.75
1035 |
4.12
104.8 |
R94
|
31.50
800.10 |
0.50
12.70 |
0.78
19.84 |
33.88
861 |
28
|
2"
|
37.00
939.8 |
1478.50
670.52 |
30"
|
43.00
1090 |
4.38
111.2 |
R95
|
33.75
857.25 |
0.50
12.70 |
0.78
19.84 |
36.12
917 |
28
|
2-1/8"
|
39.25
997.0 |
1741.84
789.95 |
32"
|
45.25
1150 |
4.56
115.9 |
R96
|
36.00
914.40 |
0.56
14.27 |
0.91
23.01 |
38.75
984 |
28
|
2-1/8"
|
41.50
1054.1 |
2025.12
918.42 |
34"
|
47.50
1205 |
4.81
122.3 |
R97
|
38.00
965.20 |
0.56
14.27 |
0.91
23.01 |
40.75
1035 |
28
|
2-1/8"
|
43.50
1104.9 |
2362.99
1071.65 |
36"
|
50.00
1270 |
5.06
128.6 |
R98
|
40.25
1022.35 |
0.56
14.27 |
0.91
23.01 |
43.00
1092 |
32
|
2-1/8"
|
46.00
1168.4 |
2746.88
1245.75 |
*D: outside diameter of flange; g: diameter of raised portion; k: diameter of bolt circle.
b: flange thickness, E: Groove depth(which should be to the height of raised portion)
b: flange thickness, E: Groove depth(which should be to the height of raised portion)
Views: Author:hbmetals Date:15/04/19
