ASME B16.47 Series A(MSS SP-44) Blind Flange RTJ 600LB

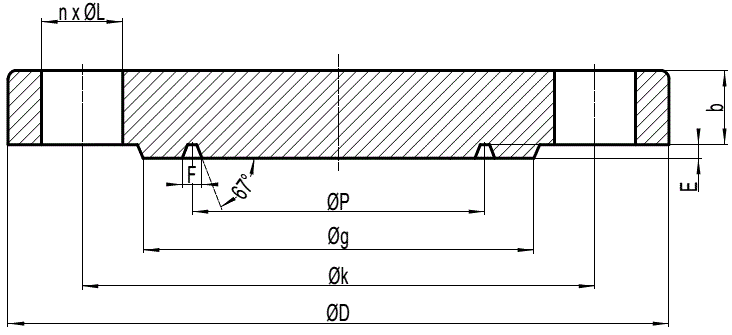

1. Drawing of ASME B16.47 Series A (MSS SP44) BL RTJ Class 600
2. Dimensions & Weight of ASME B16.47 Series A (MSS SP44) BL RTJ 600LBS
|
NPS
|
Flange Dim.
|
Ring Joint Dimension
|
Drilling Dimensions
|
Weight
|
|||||||
|
D
inch mm |
b
inch mm |
Groove
Number |
P
inch mm |
E
inch mm |
F
inch mm |
g
inch mm |
No. of
Bolt Holes |
L
inch |
k
inch mm |
Pounds
Kilos |
|
|
26"
|
40.00
1015 |
4.94
125.5 |
R93
|
29.50
749.30 |
0.50
12.70 |
0.78
19.84 |
31.88
810 |
28
|
2"
|
36.00
914.4 |
1675.36
759.80 |
|
28"
|
42.25
1075 |
5.19
131.8 |
R94
|
31.50
800.10 |
0.50
12.70 |
0.78
19.84 |
33.88
861 |
28
|
2-1/8"
|
38.00
965.2 |
1982.49
899.09 |
|
30"
|
44.50
1130 |
5.50
139.7 |
R95
|
33.75
857.25 |
0.50
12.70 |
0.78
19.84 |
36.12
917 |
28
|
2-1/8"
|
40.25
1022.4 |
2338.25
1060.43 |
|
32"
|
47.00
1195 |
5.81
147.7 |
R96
|
36.00
914.40 |
0.56
14.27 |
0.91
23.01 |
38.75
984 |
28
|
2-3/8"
|
42.50
1079.5 |
2737.71
1241.59 |
|
34"
|
49.00
1245 |
6.06
154.0 |
R97
|
38.00
965.20 |
0.56
14.27 |
0.91
23.01 |
40.75
1035 |
28
|
2-3/8"
|
44.50
1130.3 |
3114.45
1412.45 |
|
36"
|
51.75
1315 |
6.38
162.0 |
R98
|
40.25
1022.35 |
0.56
14.27 |
0.91
23.01 |
43.00
1092 |
28
|
2-5/8"
|
47.00
1193.8 |
3676.51
1667.35 |
*D: outside diameter of flange; g: diameter of raised portion; k: diameter of bolt circle.
b: flange thickness, E: Groove depth(which should be to the height of raised portion)
b: flange thickness, E: Groove depth(which should be to the height of raised portion)
