ASME B16.47 Series A(MSS SP-44) WN RTJ Flange 400LB

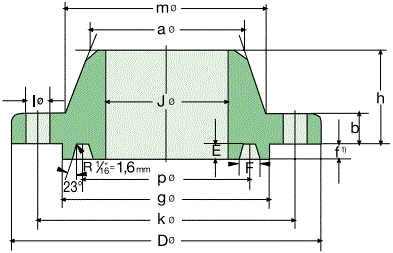

1. Drawing of ASME B16.47 Series A(MSS SP-44) WN Flange RTJ 400LB
2. Dimension & Weight of ASME B16.47 Series A(MSS SP-44) WN RTJ 400LB
Pipe
|
Flange Dimensions
|
Hub
|
Raised
Face |
Drilling Dimensions
|
Ring Joint
|
Approx.
Weight |
|||||||||
NPS
|
OD
in. mm |
D
in. mm |
J
in. mm |
b
in. mm |
h
in. mm |
a
in. mm |
m
in. mm |
g
in. mm |
No. of
Bolts |
l
in. mm |
k
in. mm |
p
in. mm |
E
in. mm |
F
in. mm |
Pounds Kilos |
26"
|
26,0
660,4 |
38 1/4
971,5 |
|
3 1/2
88,9 |
7 5/8
193,7 |
|
28 5/8
727,1 |
31 7/8
809,6 |
28
|
1 7/8
47,6 |
34 1/2
876,3 |
29 1/2
749,3 |
1/2
12,7 |
25/32
19,8 |
|
28"
|
28,0
711,2 |
40 3/4
1035,0 |
3 3/4
95,2 |
8 1/4
206,4 |
3013/16
782,6 |
33 7/8
860,4 |
28
|
2
50,8 |
37
939,8 |
31 1/2
800,1 |
1/2
12,7 |
25/32
19,8 |
|||
30"
|
30,0
762,0 |
43
1092,2 |
4
101,6 |
8 5/8
219,1 |
3215/16
836,6 |
36 1/8
917,6 |
28
|
2 1/8
54,0 |
39 1/4
996,9 |
33 3/4
857,2 |
1/2
12,7 |
25/32
19,8 |
|||
32"
|
32,0
812,8 |
45 1/4
1149,3 |
4 1/4
107,9 |
9 1/8
231,8 |
35
889,0 |
38 3/4
984,2 |
28
|
2 1/8
54,0 |
41 1/2
1054,1 |
36
914,4 |
9/16
14,3 |
29/32
23,0 |
|||
34"
|
34,0
863,6 |
47 1/2
1206,5 |
4 3/8
111,1 |
9 1/2
241,3 |
37 3/16
944,6 |
40 3/4
1035,0 |
28
|
2 1/8
54,0 |
43 1/2
1104,9 |
38
965,2 |
9/16
14,3 |
29/32
23,0 |
|||
36"
|
36,0
914,4 |
50
1270,0 |
4 1/2
114,3 |
9 7/8
250,8 |
39 3/8
1000,1 |
43
1092,2 |
32
|
2 1/8
54,0 |
46
1168,4 |
40 1/4
1022,3 |
9/16
14,3 |
29/32
23,0 |
* J & a dimensions to be specified by the purchaser.
