ASME B16.47 Series B(API 605) Blind RF Flange 400LB

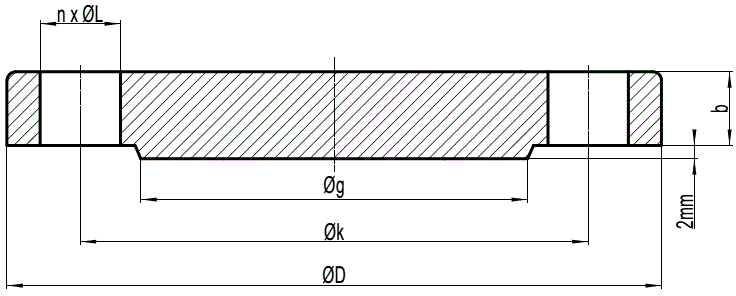

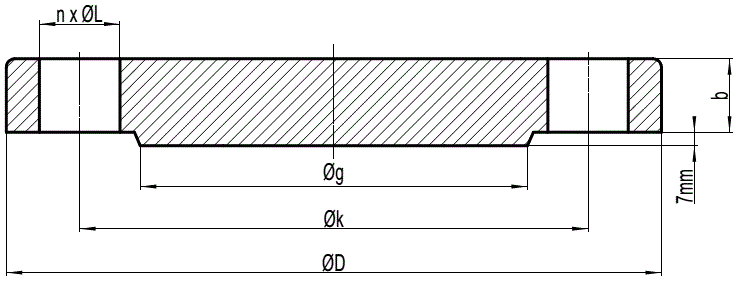

1. Drawing of ASME B16.47 Series B (API 605) Blind Flanges RF Class 400
2. Dimensions and Weight of ASME B16.47 Series B Blind Flanges RF 400LB
|
NPS
|
Flange Dimensions
|
RF
|
Drilling Dimensions
|
Weight
|
|||
|
D
inch mm |
b
inch mm |
g
inch mm |
No. of
Bolt Holes |
l
inch |
k
inch mm |
Pounds
Kilos |
|
|
26"
|
33.50
850 |
3.50
88.9 |
28.00
711 |
28
|
1-1/2"
|
30.75
781.0 |
810.58
367.61 |
|
28"
|
36.00
915 |
3.75
95.3 |
30.00
762 |
24
|
1-5/8"
|
33.00
838.2 |
1011.52
458.74 |
|
30"
|
38.25
970 |
4.00
101.6 |
32.25
819 |
28
|
1-5/8"
|
35.25
895.4 |
1218.79
552.74 |
|
32"
|
40.75
1035 |
4.25
108.0 |
34.38
873 |
28
|
1-3/4"
|
37.50
952.5 |
1469.28
666.34 |
|
34"
|
42.75
1085 |
4.38
111.2 |
36.50
927 |
32
|
1-3/4"
|
39.50
1 003.3 |
1665.63
755.39 |
|
36"
|
45.50
1155 |
4.69
119.1 |
38.62
981 |
28
|
1-7/8"
|
42.00
1 066.8 |
2032.99
921.99 |
*D: outside diameter of flange; J: inside bore diameter of the flange, to be specified by users.
b: flange thickness; h: total length through hub; a: diam. of hub top; m: diameter of hub root;
g: diameter of raised face; k: diameter of bolt circle.
