ASME B16.47 Series B(API 605) Blind RF Flange 600LB

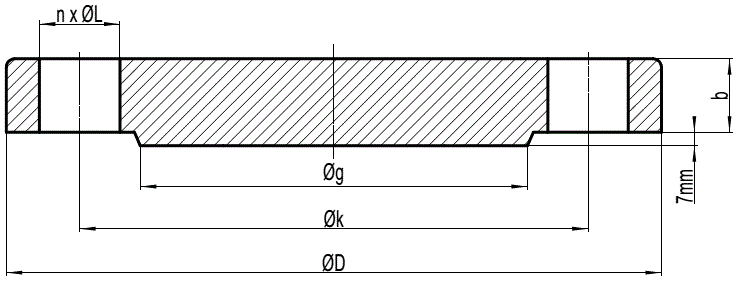

1. Drawing of ASME B16.47 Series B (API 605) Blind Flanges RF Class 600
2. Dimensions and Weight of ASME B16.47 Series B Blind Flanges RF 600LB
|
NPS
|
Flange Dimensions
|
RF
|
Drilling Dimensions
|
Weight
|
|||
|
D
inch mm |
b
inch mm |
g
inch mm |
No. of
Bolt Holes |
l
inch |
k
inch mm |
Pounds
Kilos |
|
|
26"
|
35.00
890 |
4.38
111.2 |
28.62
727 |
28
|
1-3/4"
|
31.75
806.4 |
1093.79
496.05 |
|
28"
|
37.50
950 |
4.56
115.9 |
30.88
784 |
28
|
1-7/8"
|
34.00
863.6 |
1308.29
593.33 |
|
30"
|
40.25
1020 |
4.94
125.5 |
33.12
841 |
28
|
2"
|
36.50
927.1 |
1657.08
751.51 |
|
32"
|
42.75
1085 |
5.12
130.2 |
35.25
895 |
28
|
2-1/8"
|
38.75
984.2 |
1987.56
901.39 |
|
34"
|
45.75
1160 |
5.56
141.3 |
37.50
953 |
24
|
2-3/8"
|
41.50
1054.1 |
2445.98
1109.29 |
|
36"
|
47.75
1215 |
5.75
146.1 |
39.75
1010 |
28
|
2-3/8"
|
43.50
1104.9 |
2777.48
1259.63 |
*D: outside diameter of flange; J: inside bore diameter of the flange, to be specified by users.
b: flange thickness; h: total length through hub; a: diam. of hub top; m: diameter of hub root;
g: diameter of raised face; k: diameter of bolt circle.
