ASME B16.47 Series B(API 605) Blind RF Flange 900LB

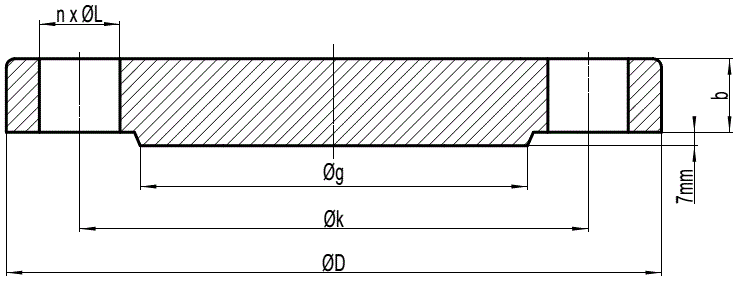

1. Drawing of ASME B16.47 Series B (API 605) Blind Flanges RF Class 900
2. Dimensions and Weight of ASME B16.47 Series B Blind Flanges RF 900LB
|
NPS
|
Flange Dimensions
|
RF
|
Drilling Dimensions
|
Weight
|
|||
|
D
inch mm |
b
inch mm |
g
inch mm |
No. of
Bolt Holes |
l
inch |
k
inch mm |
Pounds
Kilos |
|
|
26"
|
40.25
1020 |
6.06
154 |
30.00
762 |
20
|
2-5/8"
|
35.50
901.7 |
1969.46
893.18 |
|
28"
|
43.50
1105 |
6.56
166.7 |
32.25
819 |
20
|
2-7/8"
|
38.25
971.6 |
2484.66
1126.83 |
|
30"
|
46.50
1180 |
6.93
176.1 |
34.50
876 |
20
|
3-1/8"
|
40.75
1035.0 |
2994.26
1357.94 |
|
32"
|
48.75
1240 |
7.31
186.0 |
36.50
927 |
20
|
3-1/8"
|
43.00
1092.2 |
3505.06
1590.05 |
|
34"
|
51.75
1315 |
7.68
195.0 |
39.00
991 |
20
|
3-3/8"
|
45.50
1155.7 |
4139.64
1877.39 |
|
36"
|
53.00
1345 |
7.94
201.7 |
40.50
1029 |
24
|
3-1/8"
|
47.25
1200.2 |
4503.43
2042.37 |
*D: outside diameter of flange; J: inside bore diameter of the flange, to be specified by users.
b: flange thickness; h: total length through hub; a: diam. of hub top; m: diameter of hub root;
g: diameter of raised face; k: diameter of bolt circle.
