ASME B16.9: 180D Return L/R

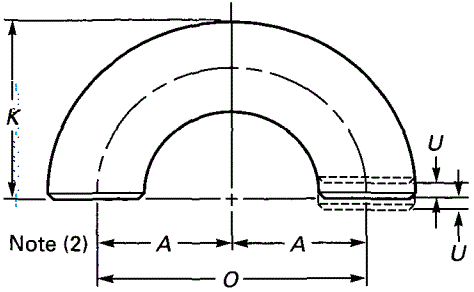

1. Technical Drawing of 180D Return L/R Buttwelding(ASME B16.9)
2. Dimensions of 180D Return Long Radius BW(ASME B16.9)
|
Norminal Pipe
Size (NPS) |
Outside Diameter
|
Center to Center
O |
Back to Face
K |
|
1/2
|
21.3
|
76
|
48
|
|
3/4
|
26.7
|
76
|
51
|
|
1
|
33.4
|
76
|
56
|
|
1 1/4
|
42.2
|
95
|
70
|
|
1 1/2
|
48.3
|
114
|
83
|
|
2
|
60.3
|
152
|
106
|
|
2 1/2
|
73
|
190
|
132
|
|
3
|
88.9
|
229
|
159
|
|
3 1/2
|
101.6
|
267
|
184
|
|
4
|
114.3
|
305
|
210
|
|
5
|
141.3
|
381
|
262
|
|
6
|
168.3
|
457
|
313
|
|
8
|
219.1
|
610
|
414
|
|
10
|
273
|
762
|
518
|
|
12
|
323.8
|
914
|
619
|
|
14
|
355.6
|
1067
|
711
|
|
16
|
406.4
|
1219
|
813
|
|
18
|
457
|
1372
|
914
|
|
20
|
508
|
1524
|
1016
|
|
22
|
559
|
1676
|
1118
|
|
24
|
610
|
1829
|
1219
|
*All dimensions are in mm unit(inch unit data sheet is also available upon request).
*Click to view the selection of materials for butt weld pipe fittings.
*Tolerances of dimensions are in conformance with ASME B16.9
