ASME B16.9: 180D Return S/R

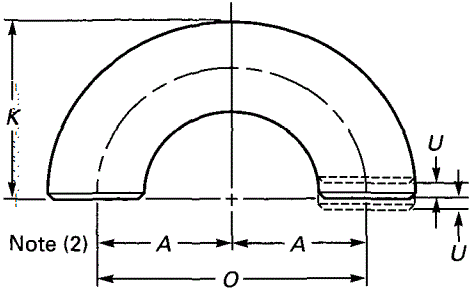

1. Technical Drawing of 180D Return S/R Buttwelding(ASME B16.9)
2. Dimensions of 180D Return Short Radius BW(ASME B16.9)
|
Norminal Pipe
Size (NPS) |
Outside
Diameter |
Center to Center
O |
Back to Face
K |
|
1
|
33.4
|
51
|
41
|
|
1 1/4
|
42.2
|
64
|
52
|
|
1 1/2
|
48.3
|
76
|
62
|
|
2
|
60.3
|
102
|
81
|
|
2 1/2
|
73
|
127
|
100
|
|
3
|
88.9
|
152
|
121
|
|
3 1/2
|
101.6
|
178
|
140
|
|
4
|
114.3
|
203
|
159
|
|
5
|
141.3
|
254
|
197
|
|
6
|
168.3
|
305
|
237
|
|
8
|
219.1
|
406
|
313
|
|
10
|
273
|
508
|
391
|
|
12
|
323.8
|
610
|
467
|
|
14
|
355.6
|
711
|
533
|
|
16
|
406.4
|
813
|
610
|
|
18
|
457
|
914
|
686
|
|
20
|
508
|
1016
|
762
|
|
22
|
559
|
1118
|
838
|
|
24
|
610
|
1219
|
914
|
*All dimensions are in mm unit(inch unit data sheet is also available upon request).
*Click to view the selection of materials for butt weld pipe fittings.
*Tolerances of dimensions are in conformance with ASME B16.9
