ASME B16.9: Elbow 90D S/R

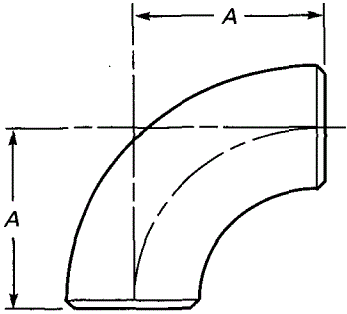

1. Technical Drawing of 90D Elbow S/R Buttwelding(ASME B16.9)
2. Dimensions of 90D Elbow Short Radius BW(ASME B16.9)
|
Nominal Pipe Size
(NPS) |
Outside Diameter
|
Center to End
|
|
90 degree Elbows A
|
||
|
1
|
33.4
|
25
|
|
1 1/4
|
42.2
|
32
|
|
1 1/2
|
48.3
|
38
|
|
2
|
60.3
|
51
|
|
2 1/2
|
73
|
64
|
|
3
|
88.9
|
76
|
|
3 1/2
|
101.6
|
89
|
|
4
|
114.3
|
102
|
|
5
|
141.3
|
127
|
|
6
|
168.3
|
152
|
|
8
|
219.1
|
203
|
|
10
|
273
|
254
|
|
12
|
323.8
|
305
|
|
14
|
355.6
|
356
|
|
16
|
406.4
|
406
|
|
18
|
457
|
457
|
|
20
|
508
|
508
|
|
22
|
559
|
559
|
|
24
|
610
|
610
|
*All dimensions are in mm unit(inch unit data sheet is also available upon request).
*Click to view the selection of materials for butt weld pipe fittings.
*Tolerances of dimensions are in conformance with ASME B16.9
