Mechanical Properties of ASTM B 166 Inconel 600 Rods and Bars
The mechanical properties of ASTM B 166 UNS N06600 rods and bars differ a lot depending on different conditions and sizes.
1. Mechanical properties of cold worked Inconel 600 rods (round bars)
|
* D of
Rod (Round bar) |
Tensile Strength min.
psi (MPa) |
Yield Strength min.
psi (MPa) |
Elongation min.
% |
|
D < 1/2"
|
120000 (825)
|
90000 (620)
|
7
|
|
1/2" ≤ D ≤ 1"
|
110000 (760)
|
85000 (585)
|
10
|
|
1" < D ≤ 2-1/2"
|
105000 (725)
|
80000 (550)
|
12
|
|
* D refers to the diameter of the rod / round bar. 1" = 25.4 mm
|
|||
2. Mechanical properties of cold worked Inconel 600 bars
|
* D of bar
|
Tensile Strength min.
psi (MPa) |
Yield Strength min.
psi (MPa) |
Elongation min.
% |
|
D ≤ 1/4"
|
100000 (690)
|
80000 (550)
|
5
|
|
1/4" < D < 1/2"
|
95000 (655)
|
70000 (480)
|
7
|
|
*D refers to the distance between parallel surfaces of the bar. 1" = 25.4 mm
The cross section of the bar can be either suqare, hexagon or rectangle. |
|||
3. Mechanical properties of hot worked Inconel 600 rods (round bars)
|
* D of
Rod (Round bar) |
Tensile Strength min.
psi (MPa) |
Yield Strength min.
psi (MPa) |
Elongation min.
% |
|
1/4" < D ≤ 1/2"
|
95000 (655)
|
45000 (310)
|
20
|
|
1/2" < D ≤ 3"
|
90000 (620)
|
40000 (275)
|
25
|
|
D > 3"
|
85000 (585)
|
35000 (240)
|
30
|
|
* D refers to the diameter of the rod / round bar. 1" = 25.4 mm
|
|||
4. Mechanical properties of hot worked Inconel 600 bars
|
* D of bar
|
Tensile Strength min.
psi (MPa) |
Yield Strength min.
psi (MPa) |
Elongation min.
% |
|
All Sizes
|
85000 (585)
|
35000 (240)
|
20
|
|
*D refers to the distance between parallel surfaces of the bar. 1" = 25.4 mm
The cross section of the bar can be either suqare, hexagon or rectangle. |
|||
5. Inconel 600 bars and rods: hot-worked, annealed & cold-worked, annealed
|
Bars and Rods
|
Tensile Strength min.
psi (MPa) |
Yield Strength min.
psi (MPa) |
Elongation min.
% |
|
All Sizes
|
80000 (550)
|
35000 (240)
|
30
|

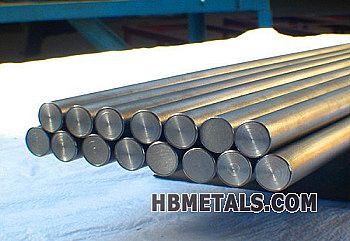

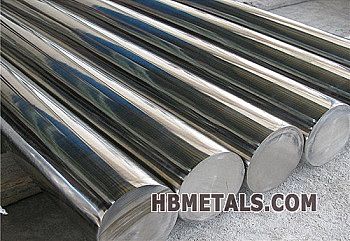

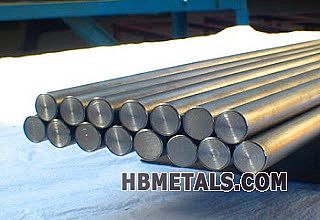

6. Product photos of Inconel 600(UNS N06600) rods and bars
Related: Chemical composition requirements of Inconel 600 UNS N06600.
