DIN 2627 Weld Neck Flanges PN 400

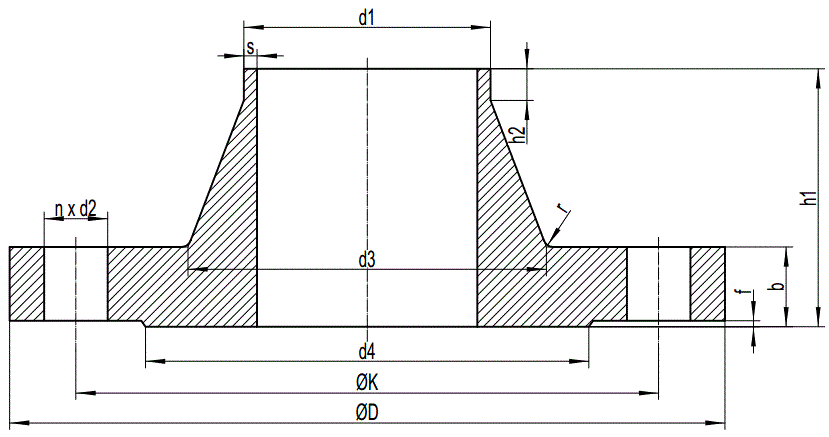

Drawing of DIN 2627 Weld Neck Flanges(PN 400)
Dimensions and weight of DIN 2627 Weld Neck Flanges(PN 400)
|
Nominal
Diameter |
Pipe O.D
d1 |
Flange Dimensions
|
Hub Dimensions
|
Raised Face
|
Bolting Dimensions
|
WT.
|
|||||||||
|
DN
|
ISO
|
D
|
b
|
K
|
h1
|
d3
|
s
|
r
|
h2
|
d4
|
f
|
n
|
bolt
|
d2
|
Kgs
|
|
10
|
17.2
|
125
|
28
|
85
|
65
|
48
|
3.6
|
4
|
8
|
40
|
2
|
4
|
M16
|
18
|
2.52
|
|
15
|
26.9
|
145
|
30
|
100
|
68
|
56
|
5
|
4
|
8
|
45
|
2
|
4
|
M20
|
22
|
3.59
|
|
25
|
42.4
|
180
|
38
|
130
|
90
|
82
|
7.1
|
4
|
10
|
68
|
2
|
4
|
M24
|
26
|
7.43
|
|
40
|
60.3
|
220
|
48
|
165
|
110
|
106
|
10
|
6
|
12
|
88
|
3
|
4
|
M27
|
30
|
14
|
|
50
|
76.1
|
235
|
52
|
180
|
120
|
120
|
12.5
|
6
|
15
|
102
|
3
|
8
|
M27
|
30
|
16.7
|
|
65
|
101.6
|
290
|
64
|
225
|
135
|
158
|
16
|
6
|
18
|
122
|
3
|
8
|
M30
|
33
|
31.6
|
|
80
|
114.3
|
305
|
68
|
240
|
150
|
174
|
17.5
|
8
|
20
|
138
|
3
|
8
|
M30
|
33
|
38.4
|
|
100
|
139.7
|
370
|
80
|
295
|
175
|
216
|
22.2
|
8
|
25
|
162
|
3
|
8
|
M36
|
39
|
67.3
|
|
125
|
193.7
|
415
|
92
|
340
|
200
|
258
|
30
|
8
|
30
|
188
|
3
|
12
|
M36
|
39
|
96
|
|
150
|
219.7
|
475
|
105
|
390
|
225
|
302
|
35
|
10
|
35
|
218
|
3
|
12
|
M39
|
42
|
146
|
|
200
|
273.0
|
585
|
130
|
490
|
280
|
388
|
40
|
10
|
40
|
285
|
3
|
16
|
M45
|
48
|
296
|
*All dimensions are in mm unless otherwise specified.
