DIN3352 F4 Gate Valves OS&Y PN25

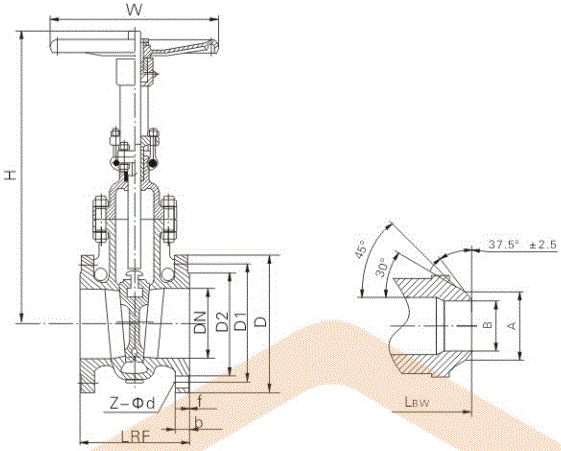

1. G.A Drawing of DIN3352 F4 Gate Valves OS&Y PN25
2. Dimensions for DIN3352 F4 Gate Valves OS&Y PN25
|
DIN 3352-F4 OS&Y GATE VALVE PN25
|
|||||||||||
|
DN
|
LRF
|
D(Ø)
|
D1(Ø)
|
D2(Ø)
|
f
|
b
|
Z-Ød
|
A
|
B
|
H
|
W(Ø)
|
|
50
|
150
|
165
|
125
|
99
|
2
|
20
|
4-Ø18
|
60
|
52
|
355
|
200
|
|
65
|
170
|
185
|
145
|
118
|
2
|
22
|
8-Ø18
|
75
|
63
|
376
|
200
|
|
80
|
180
|
200
|
160
|
132
|
2
|
24
|
8-Ø18
|
91
|
78
|
435
|
280
|
|
100
|
190
|
235
|
190
|
156
|
2
|
24
|
8-Ø22
|
117
|
102
|
502
|
300
|
|
125
|
200
|
270
|
220
|
184
|
2
|
26
|
8-Ø26
|
144
|
128
|
615
|
320
|
|
150
|
210
|
300
|
250
|
211
|
2
|
28
|
8-Ø26
|
172
|
154
|
675
|
360
|
|
200
|
230
|
360
|
310
|
274
|
2
|
30
|
12-Ø26
|
223
|
203
|
820
|
400
|
|
250
|
250
|
425
|
370
|
330
|
2
|
32
|
12-Ø30
|
278
|
255
|
970
|
450
|
|
300
|
270
|
485
|
430
|
389
|
2
|
34
|
16-Ø30
|
329
|
305
|
1145
|
500
|
|
350
|
290
|
555
|
490
|
448
|
2
|
38
|
16-Ø33
|
362
|
337
|
1280
|
550
|
|
400
|
310
|
620
|
550
|
503
|
2
|
40
|
16-Ø36
|
413
|
387
|
1451
|
600
|
|
450
|
330
|
670
|
600
|
548
|
2
|
46
|
20-Ø36
|
464
|
438
|
1545
|
650
|
|
500
|
350
|
730
|
660
|
609
|
2
|
48
|
20-Ø36
|
516
|
489
|
1678
|
700
|
|
600
|
390
|
845
|
770
|
720
|
2
|
58
|
20-Ø39
|
619
|
591
|
1875
|
800
|
|
700
|
430
|
960
|
875
|
820
|
5
|
50
|
24-Ø42
|
721
|
695
|
2085
|
900
|
|
800
|
470
|
1085
|
990
|
928
|
5
|
54
|
24-Ø48
|
825
|
797
|
2405
|
950
|
|
900
|
510
|
1185
|
1090
|
1028
|
5
|
58
|
28-Ø48
|
927
|
899
|
2950
|
1000
|
|
1000
|
550
|
1320
|
1210
|
1140
|
5
|
62
|
28-Ø55
|
-
|
-
|
3244
|
1000
|
Notes: 1) All dimensions are in mm unless otherwise specified.
2) See more details including material selection, design standards and specification.
3) Custom design or special metal materials are available upon request.
