DIN3352 F5 Gate Valves NON-RISING STEM PN16

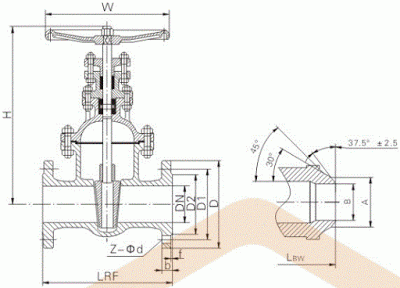

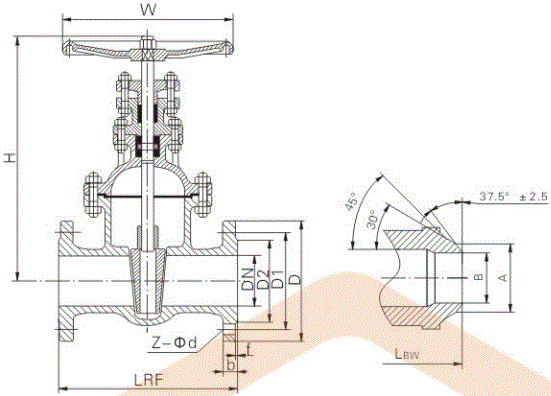

1. G.A Drawing of DIN3352 F5 Gate Valves NON-RISING STEM PN16

DIN 3352-F5 NON-RISING STEM GATE VALVE PN16
DN	LRF	D	D1(Ø)	D2(Ø)	f	b	Z-Ød	A	B	H	W
50	250	165	125	99	2	20	4-Ø18	60	52	265	200
65	270	185	145	118	2	20	4-Ø18	75	63	282	200
80	280	200	160	132	2	20	8-Ø18	91	78	325	280
100	300	220	180	156	2	22	8-Ø18	117	102	376	300
125	325	250	210	184	2	22	8-Ø18	144	128	462	320
150	350	285	240	211	2	24	8-Ø22	172	154	506	360
200	400	340	295	266	2	24	12-Ø22	223	203	615	400
250	450	405	355	319	2	26	12-Ø26	278	255	727	450
300	500	460	410	370	2	28	12-Ø26	329	305	858	500
350	550	520	470	429	2	30	16-Ø26	362	337	960	550
400	600	580	525	480	2	32	16-Ø30	413	387	1085	600
450	650	640	585	548	2	40	20-Ø30	464	438	1158	650
500	700	715	650	609	2	44	20-Ø33	516	489	1258	700
600	800	840	770	720	2	54	20-Ø36	619	591	1405	800
700	900	910	840	794	5	40	24-Ø36	721	695	1563	900
800	1000	1025	950	901	5	42	24-Ø39	825	797	1803	950
900	1100	1125	1050	1001	5	44	28-Ø39	927	899	2215	1000
1000	1200	1255	1170	1112	5	46	28-Ø42	-	-	2432	1000

Notes: 1) All dimensions are in mm unless otherwise specified.

3) Custom design or special metal materials are available upon request.
