DIN3352 F5 Gate Valves OS&Y PN16

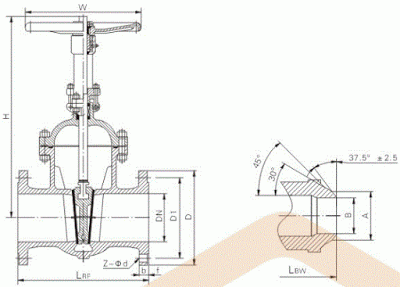

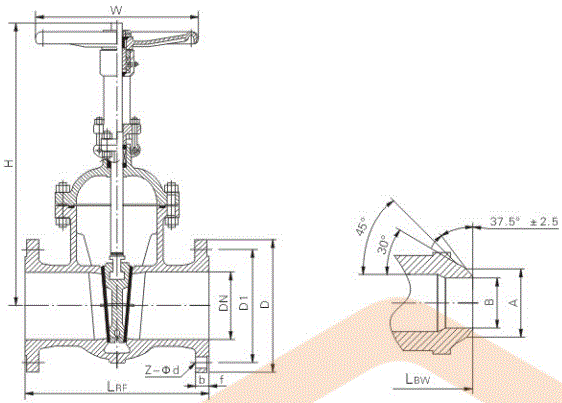

1. G.A Drawing of DIN3352 F5 Gate Valves OS&Y PN16
2. Dimensions for DIN3352 F5 Gate Valves OS&Y PN16
|
DIN 3352-F5 OS&Y GATE VALVE PN16
|
||||||||||
|
DN
|
LRF
|
LBW
|
D
|
D1(Ø)
|
b
|
Z-Ød
|
A
|
B
|
H
|
W
|
|
50
|
250
|
250
|
165
|
125
|
18
|
4-Ø18
|
60
|
52
|
355
|
200
|
|
65
|
270
|
270
|
185
|
145
|
18
|
4-Ø18
|
75
|
63
|
376
|
200
|
|
80
|
280
|
280
|
200
|
160
|
20
|
8-Ø18
|
91
|
78
|
435
|
280
|
|
100
|
300
|
300
|
220
|
180
|
20
|
8-Ø18
|
117
|
102
|
502
|
300
|
|
125
|
325
|
325
|
250
|
210
|
22
|
8-Ø18
|
144
|
128
|
615
|
320
|
|
150
|
350
|
350
|
285
|
240
|
22
|
8-Ø22
|
172
|
154
|
675
|
360
|
|
200
|
400
|
400
|
340
|
295
|
24
|
12-Ø22
|
223
|
203
|
820
|
400
|
|
250
|
450
|
450
|
405
|
355
|
26
|
12-Ø26
|
278
|
255
|
970
|
450
|
|
300
|
500
|
500
|
460
|
410
|
28
|
12-Ø26
|
329
|
305
|
1145
|
500
|
|
350
|
550
|
550
|
520
|
470
|
30
|
16-Ø26
|
362
|
337
|
1280
|
550
|
|
400
|
600
|
600
|
580
|
525
|
32
|
16-Ø30
|
413
|
387
|
1451
|
600
|
|
450
|
650
|
650
|
640
|
585
|
34
|
20-Ø30
|
464
|
438
|
1545
|
650
|
|
500
|
700
|
700
|
715
|
650
|
36
|
20-Ø33
|
516
|
489
|
1678
|
700
|
|
600
|
800
|
800
|
840
|
770
|
40
|
20-Ø36
|
619
|
591
|
1875
|
800
|
|
700
|
900
|
900
|
910
|
840
|
42
|
24-Ø36
|
721
|
695
|
2085
|
900
|
|
800
|
1000
|
1000
|
1025
|
950
|
42
|
24-Ø39
|
825
|
797
|
2405
|
950
|
|
900
|
1100
|
1100
|
1125
|
1050
|
44
|
28-Ø39
|
927
|
899
|
2950
|
1000
|
|
1000
|
1200
|
1200
|
1255
|
1170
|
46
|
28-Ø42
|
-
|
-
|
3244
|
1000
|
Notes: 1) All dimensions are in mm unless otherwise specified.
2) See more details including material selection, design standards and specification.
3) Custom design or special metal materials are available upon request.
3. Related Products of DIN3352 Gate Valves
|
DIN3352 GATE VALVE SERIES (F4/F5/F7, RISING STEM & NON-RISING STEM)
|
||||
