EN 10253-1 Pipe Fittings: Caps

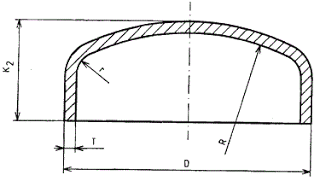

1. Technical drawing of EN 10253-1 caps.
2. Dimensions of EN 10253-1 caps.
|
DN
|
D
|
T
|
K2
|
|
20
|
26.9
|
2.3
|
25
|
|
25
|
33.7
|
2.6
|
25
|
|
32
|
42.4
|
2.6
|
25
|
|
40
|
48.3
|
2.6
|
38
|
|
50
|
60.3
|
2.9
|
38
|
|
65
|
76.1
|
2.9
|
38
|
|
80
|
88.9
|
3.2
|
51
|
|
90
|
101.6
|
4.0
|
64
|
|
100
|
114.3
|
3.6
|
64
|
|
125
|
139.7
|
4.5
|
76
|
|
150
|
168.3
|
4.5
|
89
|
|
200
|
219.1
|
6.3
|
102
|
|
250
|
273.0
|
6.3
|
127
|
|
300
|
323.9
|
7.1
|
152
|
|
350
|
355.6
|
8.0
|
165
|
|
400
|
406.4
|
8.8
|
178
|
*D: Outside diameter of dished ends. T: Wall thickness of dished ends.
*K2: Total height of dished ends. h: Height of straight part of dished ends.
*K2: Total height of dished ends. h: Height of straight part of dished ends.
*F: Face to center length of reducing tees. R: approximately equal to D;
*r: internal round radius, approximately equal to 0.1*D.
*r: internal round radius, approximately equal to 0.1*D.
*All dimensions are in mm unless otherwise specified.
*See the tolerances of dimensions and for EN 10253-1 dished ends.
*See the chemical composition & mechanical properties of S235 / S265 material.
