EN1092-1 Type 01 SO Plate Flange PN6

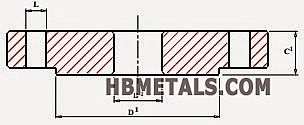

1. Technical Drawing of EN1092-1 PN6 Type 01 SO Plate Flange
2. Dimensions of EN1092-1 PN6 Type 01 SO Plate Flange
|
NPS
DN |
Outside
Diameter D |
Bolt Circle
Diameter K |
Diameter of
Bolt Hole L |
Nos. Of
Bolts |
Flange
Thickness C1 |
Inside
Diameter B1 |
Diameter of
Raised Face D1 |
|
15(21.3)
|
80
|
55
|
11
|
4
|
12
|
22
|
40
|
|
20(26.9)
|
90
|
65
|
11
|
4
|
14
|
27.5
|
50
|
|
25(33.7)
|
100
|
75
|
11
|
4
|
14
|
34.5
|
60
|
|
32(42.4)
|
120
|
90
|
14
|
4
|
16
|
43.5
|
70
|
|
40(48.3)
|
130
|
100
|
14
|
4
|
16
|
49.5
|
80
|
|
50(60.3)
|
140
|
110
|
14
|
4
|
16
|
61.5
|
90
|
|
65(76.1)
|
160
|
130
|
14
|
4
|
16
|
77.5
|
110
|
|
80(88.9)
|
190
|
150
|
18
|
4
|
18
|
90.5
|
128
|
|
100(114.3)
|
210
|
170
|
18
|
4
|
18
|
116
|
148
|
|
125(139.7)
|
240
|
200
|
18
|
8
|
20
|
141.5
|
178
|
|
150(168.3)
|
265
|
225
|
18
|
8
|
20
|
170.5
|
202
|
|
200(219.1)
|
320
|
280
|
18
|
8
|
22
|
221.5
|
258
|
|
250(273)
|
375
|
335
|
18
|
12
|
24
|
276.5
|
312
|
|
300(323.9)
|
440
|
395
|
22
|
12
|
24
|
327.5
|
365
|
|
350(355.6)
|
490
|
445
|
22
|
12
|
26
|
359.5
|
415
|
|
400(406.4)
|
540
|
495
|
22
|
16
|
28
|
411
|
465
|
|
450(457)
|
595
|
550
|
22
|
16
|
30
|
462
|
520
|
|
500(508)
|
645
|
600
|
22
|
20
|
30
|
513.5
|
570
|
3. Tolerance of dimensions
|
D
|
K
|
C1
|
B1
|
D1
|
RF HEIGHT
|
|
<150±2
>150<500±3 |
M10 to M24±1
M27 to M45±1.5 |
≤18±1
>18≤50±1.5 |
≤100+0.5-0
>100≤400+1-0 >400≤600+1.5-0 |
≤250+2-1
>250+3-1 |
+0-1
|
4. Technical Remark
1. All dimensions are in mm unless otherwise specified.
2. Raised face finish: 3.2-12.5 Ra serrated spiral.
3. Raised face height: 2mm.
3. Stock materials available: S235JR, St37.2, C22.8, A105, SS304(L), SS316(L).
