EN1092-1 Type 05 Blind Flange FF PN6

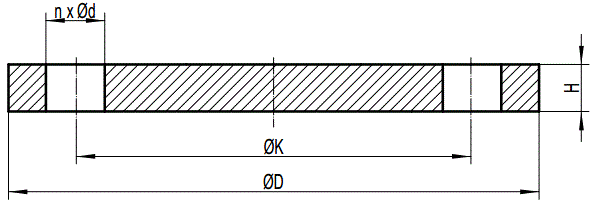

1. Technical Drawing of EN1092-1 PN6 Type 05 Blind Flange FF(Flat Face)
2. Dimensions of EN1092-1 PN6 Type 05 Blind Flange FF
|
Nominal
Pipe Size DN |
Outside
Diameter D |
Bolt Circle
Diameter K |
Diameter of
Bolt Hole d |
Nos. Of
Bolts n |
Flange
Thickness H |
|
15(21.3)
|
80
|
55
|
11
|
4
|
12
|
|
20(26.9)
|
90
|
65
|
11
|
4
|
14
|
|
25(33.7)
|
100
|
75
|
11
|
4
|
14
|
|
32(42.4)
|
120
|
90
|
14
|
4
|
14
|
|
40(48.3)
|
130
|
100
|
14
|
4
|
14
|
|
50(60.3)
|
140
|
110
|
14
|
4
|
14
|
|
65(76.1)
|
160
|
130
|
14
|
4
|
14
|
|
80(88.9)
|
190
|
150
|
18
|
4
|
16
|
|
100(114.3)
|
210
|
170
|
18
|
4
|
16
|
|
125(139.7)
|
240
|
200
|
18
|
8
|
18
|
|
150(168.3)
|
265
|
225
|
18
|
8
|
18
|
|
200(219.1)
|
320
|
280
|
18
|
8
|
20
|
|
250(273)
|
375
|
335
|
18
|
12
|
22
|
|
300(323.9)
|
440
|
395
|
22
|
12
|
22
|
|
350(355.6)
|
490
|
445
|
22
|
12
|
22
|
|
400(406.4)
|
540
|
495
|
22
|
16
|
22
|
|
450(457)
|
595
|
550
|
22
|
16
|
24
|
|
500(508)
|
645
|
600
|
22
|
20
|
24
|
3. Tolerance of dimensions
|
D
|
K
|
C4
|
|
<150±2
>150<500±3 |
M10 to M24±1
M27 to M45±1.5 |
≤18±1
>18≤50±1.5 |
4. Technical Remark
1. All dimensions are in mm unless otherwise specified.
2. Flat face finish: 3.2-12.5 Ra serrated spiral.
3. Stock materials available: S235JR, St37.2, C22.8, A105, SS304(L), SS316(L).
Views: Author：hbmetals Date:15/03/14
