    Split Body Floating Ball Valve Full Port Class 150

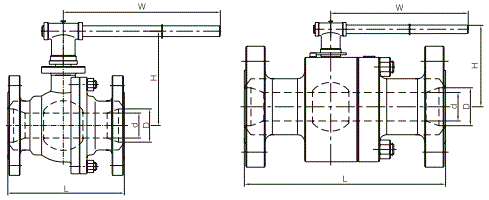

    1. Technical G.A Drawing of Split Body Floating Ball Valve Full Port Class 150

    Split Body Floating Ball Valve

    2. Dimension & Weight of Split Body Floating Ball Valve Full Port Class 150

    CLASS 150 FULL PORT
    NPS
    d
    L-RF
    L-RTJ
    L-WE
    Weight(kg)
    1/2"
    13
    108
    108
    140
    81
    150
    2.8
    3/4"
    19
    117
    117
    152
    85
    150
    3.7
    1"
    25
    127
    140
    165
    98
    180
    5.3
    1-1/2"
    38
    165
    178
    190
    133
    280
    8.3
    2"
    49
    178
    191
    216
    141
    280
    15
    2-1/2"
    62
    191
    203
    241
    139
    400
    22.5
    3"
    74
    203
    216
    283
    150
    400
    27
    4"
    100
    229
    241
    305
    223
    650
    44.2
    6"
    150
    394
    406
    457
    297
    *280
    127.6
    8"
    201
    457
    470
    521
    378
    *280
    221.8
    10"
    252
    533
    546
    559
    408
    *400
    430
    12"
    303
    610
    622
    635
    430
    *400
    680
     1) All dimensions are in mm unless otherwise specified.
     2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
     3) Design standards: API 6D / API 608 / ASME B16.34.
     4) Face to Face dimensions are according to ASME B16.10.
     5) Inspected & Tested according to: API 598 / API 6D.
     6) Material selection as per "Introduction to Ball Valve: Materials".
