    Split Body Floating Ball Valve Full Port Class 2500

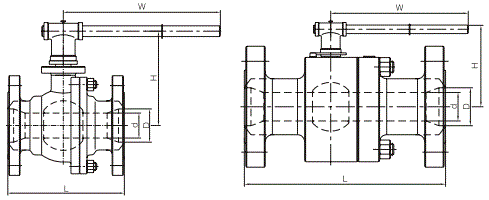

    1. Technical G.A Drawing of Split Body Floating Ball Valve Full Port Class 2500

    SLPIT BODY FLOATING BALL VALVE 2500LB

    2.  Dimension & Weight of Split Body Floating Ball Valve Full Port Class 2500

    CLASS 2500 FULL PORT
    NPS
    d
    L-RF
    L-RTJ
    L-WE
    Weight(kg)
    1/2"
    13
    264
    264
    264
    88
    230
    7.5
    3/4"
    19
    273
    273
    273
    117
    230
    12
    1"
    25
    308
    308
    308
    128
    300
    15
    1-1/2"
    38
    384
    387
    384
    148
    400
    30
    2"
    42
    451
    454
    451
    183
    500
    37.5
    1) All dimensions are in mm unless otherwise specified.
     2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
     3) Design standards: API 6D / API 608 / ASME B16.34.
     4) Face to Face dimensions are according to ASME B16.10.
     5) Inspected & Tested according to: API 598 / API 6D.
     6) Material selection as per "Introduction to Ball Valve: Materials".

    Views:   Author:hbmetals  Date:15/04/04
