Split Body Floating Ball Valve Full Port Class 300

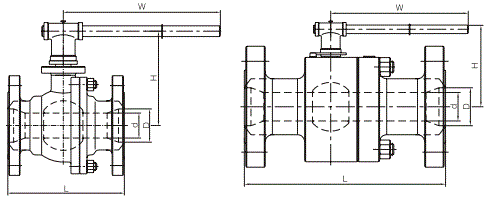

1. Technical G.A Drawing of Split Body Floating Ball Valve Full Port Class 300
2. Dimension & Weight of Split Body Floating Ball Valve Full Port Class 300
|
CLASS 300 FULL PORT
|
|||||||
|
NPS
|
d
|
L-RF
|
L-RTJ
|
L-WE
|
H
|
W
|
Weight(kg)
|
|
1/2"
|
13
|
140
|
151
|
140
|
81
|
150
|
3
|
|
3/4"
|
19
|
152
|
165
|
152
|
85
|
150
|
4
|
|
1"
|
25
|
165
|
178
|
165
|
98
|
180
|
6.6
|
|
1-1/2"
|
38
|
190
|
203
|
190
|
133
|
280
|
12.9
|
|
2"
|
49
|
216
|
232
|
216
|
141
|
280
|
21.4
|
|
2-1/2"
|
62
|
241
|
257
|
241
|
139
|
400
|
32.5
|
|
3"
|
74
|
283
|
298
|
283
|
150
|
400
|
45
|
|
4"
|
100
|
305
|
321
|
305
|
223
|
650
|
64.8
|
|
6"
|
150
|
403
|
419
|
403
|
297
|
*300
|
147.5
|
|
8"
|
201
|
502
|
518
|
521
|
378
|
*300
|
287.5
|
|
10"
|
252
|
568
|
584
|
559
|
408
|
*400
|
550
|
1) All dimensions are in mm unless otherwise specified.
2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
3) Design standards: API 6D / API 608 / ASME B16.34.
4) Face to Face dimensions are according to ASME B16.10.
5) Inspected & Tested according to: API 598 / API 6D.
6) Material selection as per "Introduction to Ball Valve: Materials".
