Split Body Floating Ball Valve Full Port Class 400

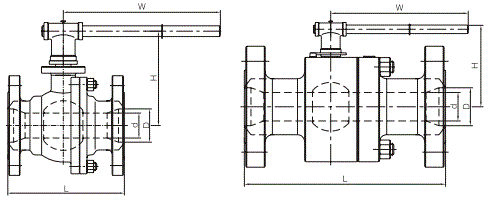

1. Technical G.A Drawing of Split Body Floating Ball Valve Full Port Class 400
2. Dimension & Weight of Split Body Floating Ball Valve Full Port Class 400
|
CLASS 400 FULL PORT
|
|||||||
|
NPS
|
d
|
L-RF
|
L-RTJ
|
L-WE
|
H
|
W
|
Weight(kg)
|
|
1/2"
|
13
|
165
|
167
|
165
|
66
|
150
|
3.5
|
|
3/4"
|
19
|
190
|
190
|
190
|
88
|
170
|
5
|
|
1"
|
25
|
216
|
216
|
216
|
90
|
250
|
7.5
|
|
1-1/2"
|
38
|
241
|
241
|
241
|
120
|
400
|
15
|
|
2"
|
49
|
292
|
295
|
292
|
135
|
400
|
29.4
|
|
2-1/2"
|
62
|
330
|
333
|
330
|
150
|
400
|
39.3
|
|
3"
|
74
|
356
|
359
|
356
|
164
|
400
|
58.2
|
|
4"
|
100
|
406
|
410
|
406
|
224
|
995
|
81.2
|
1) All dimensions are in mm unless otherwise specified.
2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
3) Design standards: API 6D / API 608 / ASME B16.34.
4) Face to Face dimensions are according to ASME B16.10.
5) Inspected & Tested according to: API 598 / API 6D.
6) Material selection as per "Introduction to Ball Valve: Materials".
