    Split Body Floating Ball Valve Reduced Port Class 2500

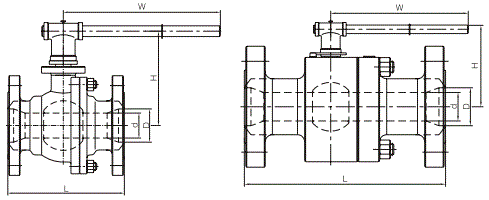

    1. Technical G.A Drawing of Split Body Floating Ball Valve  Reduced Port Class 2500

    SLPIT BODY FLOATING BALL VALVE RB 2500LB

    2. Dimension & Weight of Split Body Floating Ball Valve Reduced Port Class 2500

    CLASS 2500 REDUCED PORT
    NPS
    D
    d
    L-RF
    L-RTJ
    L-WE
    Weight(kg)
    3/4"×1/2"
    19
    13
    273
    273
    273
    88
    230
    11
    1"×3/4"
    25
    19
    308
    308
    308
    117
    230
    14
    1-1/2"×1"
    38
    25
    384
    384
    384
    128
    300
    25
    2"×1-1/2"
    42
    38
    451
    454
    451
    148
    400
    35
    3"×2"
    62
    52
    578
    584
    578
    183
    500
    60
     1) All dimensions are in mm unless otherwise specified.
     2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
     3) Design standards: API 6D / API 608 / ASME B16.34.
     4) Face to Face dimensions are according to ASME B16.10.
     5) Inspected & Tested according to: API 598 / API 6D.
     6) Material selection as per "Introduction to Ball Valve: Materials".
