Split Body Floating Ball Valve Reduced Port Class 300

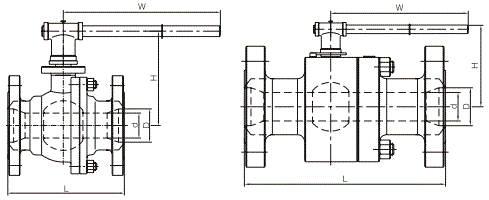

1. Technical G.A Drawing of Split Body Floating Ball Valve Reduced Port Class 300
2. Dimension & Weight of Split Body Floating Ball Valve Reduced Port Class 300
|
CLASS 300 REDUCED PORT
|
||||||
|
NPS
|
L-RF
|
L-RTJ
|
L-WE
|
H
|
W
|
Weight(kg)
|
|
3/4"×1/2"
|
152
|
165
|
152
|
81
|
150
|
3.7
|
|
1"×3/4"
|
165
|
178
|
165
|
85
|
150
|
5.8
|
|
1-1/2"×1"
|
190
|
203
|
190
|
98
|
180
|
10.5
|
|
2"×1-1/2"
|
216
|
232
|
216
|
133
|
280
|
16.1
|
|
2-1/2"×2"
|
241
|
257
|
241
|
141
|
280
|
24.5
|
|
3"×2"
|
283
|
298
|
283
|
141
|
280
|
34.7
|
|
3"×2-1/2"
|
283
|
298
|
283
|
139
|
400
|
44
|
|
4"×3"
|
305
|
321
|
305
|
150
|
400
|
53
|
|
6"×4"
|
403
|
419
|
403
|
223
|
650
|
100
|
|
8"×6"
|
502
|
518
|
521
|
297
|
*300
|
170
|
|
10"×8"
|
502
|
518
|
521
|
378
|
*300
|
250
|
|
12"×10"
|
568
|
584
|
559
|
408
|
*400
|
|
1) All dimensions are in mm unless otherwise specified.
2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
3) Design standards: API 6D / API 608 / ASME B16.34.
4) Face to Face dimensions are according to ASME B16.10.
5) Inspected & Tested according to: API 598 / API 6D.
6) Material selection as per "Introduction to Ball Valve: Materials".
