Side Entry Trunnion Mounted Ball Valve: Full Port Class 150

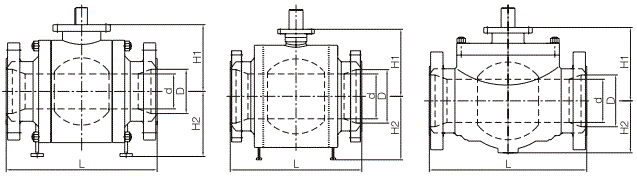

1. Technical G.A Drawing of Side Entry Trunnion Mounted Ball Valve Full Port Class 150
2. Dimension & Weight of Side Entry Trunnion Mounted Ball Valve Full Port Class 150
|
SIDE ENTRY TRUNNION MOUNTED BALL VALVE 150LB DIMENSIONS & WEIGHT
|
|||||||
|
NPS
|
D
|
L-RF
|
L-RTJ
|
L-WE
|
H1
|
H2
|
Weight(kg)
|
|
2"
|
49
|
178
|
191
|
216
|
106
|
102
|
16
|
|
2-1/2"
|
62
|
191
|
203
|
241
|
155
|
105
|
20
|
|
3"
|
74
|
203
|
216
|
283
|
157
|
111
|
39
|
|
4"
|
100
|
229
|
241
|
305
|
198
|
187
|
55
|
|
6"
|
150
|
394
|
406
|
457
|
242
|
235
|
169
|
|
8"
|
201
|
457
|
470
|
521
|
288
|
280
|
244
|
|
10"
|
252
|
533
|
546
|
559
|
323
|
320
|
439
|
|
12"
|
303
|
610
|
622
|
635
|
375
|
355
|
688
|
|
14"
|
334
|
686
|
699
|
762
|
430
|
400
|
886
|
|
16"
|
385
|
762
|
775
|
838
|
448
|
470
|
1215
|
|
18"
|
436
|
864
|
876
|
914
|
477
|
510
|
1625
|
|
20"
|
487
|
914
|
927
|
991
|
520
|
550
|
1850
|
|
22"
|
538
|
991
|
1003
|
1092
|
528
|
477
|
2359
|
|
24"
|
589
|
1067
|
1080
|
1143
|
640
|
640
|
3120
|
|
26"
|
633
|
1143
|
1270
|
1245
|
675
|
700
|
4120
|
|
28"
|
684
|
1245
|
1376
|
1346
|
728
|
720
|
5200
|
|
30"
|
735
|
1295
|
1423
|
1397
|
749
|
780
|
5946
|
|
32"
|
779
|
1372
|
1555
|
1524
|
803
|
760
|
7020
|
|
34"
|
830
|
1473
|
1655
|
1626
|
850
|
900
|
7800
|
|
36"
|
874
|
1524
|
1758
|
1727
|
895
|
930
|
10300
|
|
40"
|
976
|
1753
|
|
1780
|
965
|
948
|
13350
|
|
42"
|
1020
|
1790
|
|
1840
|
965
|
948
|
14280
|
|
48"
|
1166
|
1995
|
|
2100
|
1097
|
1066
|
24210
|
|
56"
|
1360
|
2300
|
|
2250
|
1302
|
1253
|
34100
|
|
60"
|
1458
|
2489
|
|
2489
|
1418
|
1380
|
38500
|
1) All dimensions are in mm unless otherwise specified.
2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
3) Design standards: API 6D / API 608 / ISO14313.
4) Face to Face dimensions are according to ASME B16.10 / ASME B16.34
5) Inspected & Tested according to: API 598 / API 6D.
6) Material selection as per "Introduction to Ball Valve: Materials".
Views: Author：hbmetals Date:15/04/05
